Bedside Conrollers found in the Western General Hospital
Headphones

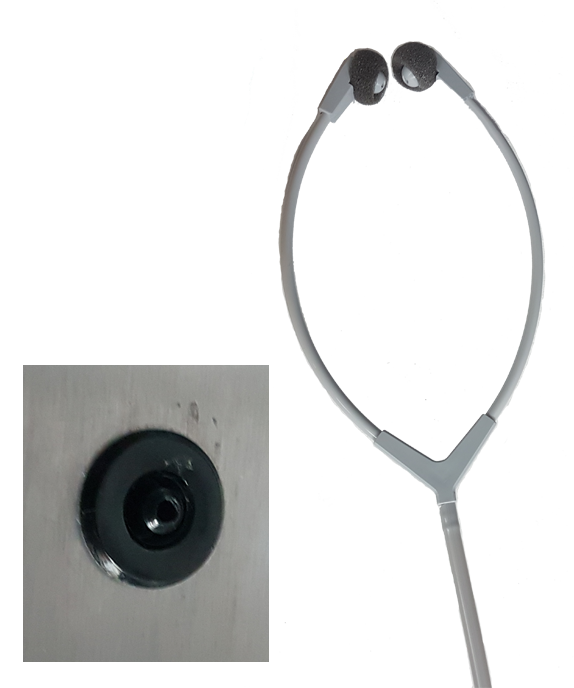

Most wards use the plastic tube style. The tube is pushed onto a plastic spigot in the bedside panel behind the bed.

The earpieces may be replaced separately for infection control so long as the tube is wiped clean.

The nurses will advice if this is acceptable under the present conditions.

Most wards have a stock of these and ward clerks know how to order.

Wards 50-58 Anne Ferguson Building
These wards use the plastic tube style headsets.
The nurse call handset has the radio controls.

1 red dot radio / BBC radio 2
2 Radio Forth
3 Classic FM
4 BBC radio 4
5 BBC radio Scotland

Ward 3


The nurse call handset has the radio controls.

This new radio system uses standard headphones with a 3.5mm jack.
The ward has stock of headsets but patients may use their own.



1 red dot radio / BBC radio2
14 channels available

Ward 4

The nurse call handset also has the radio controls.

This ward uses the plastic tube style headset.

1 red dot radio / BBC radio 2
2 Radio Forth
3 Classic FM
4 BBC radio 4
Ward 6

The nurse call handset also has the radio controls.

This ward uses the plastic tube style headphones.



1 red dot radio / BBC radio 2

5-9 various including BBC radio4 and Classic FM

Ward 11

The panel is located on the wall behind the bed.

This ward uses the plastic tube style headphones.

1 red dot radio / BBC radio 2
2 not working
3 Radio Forth
4 BBC radio 4

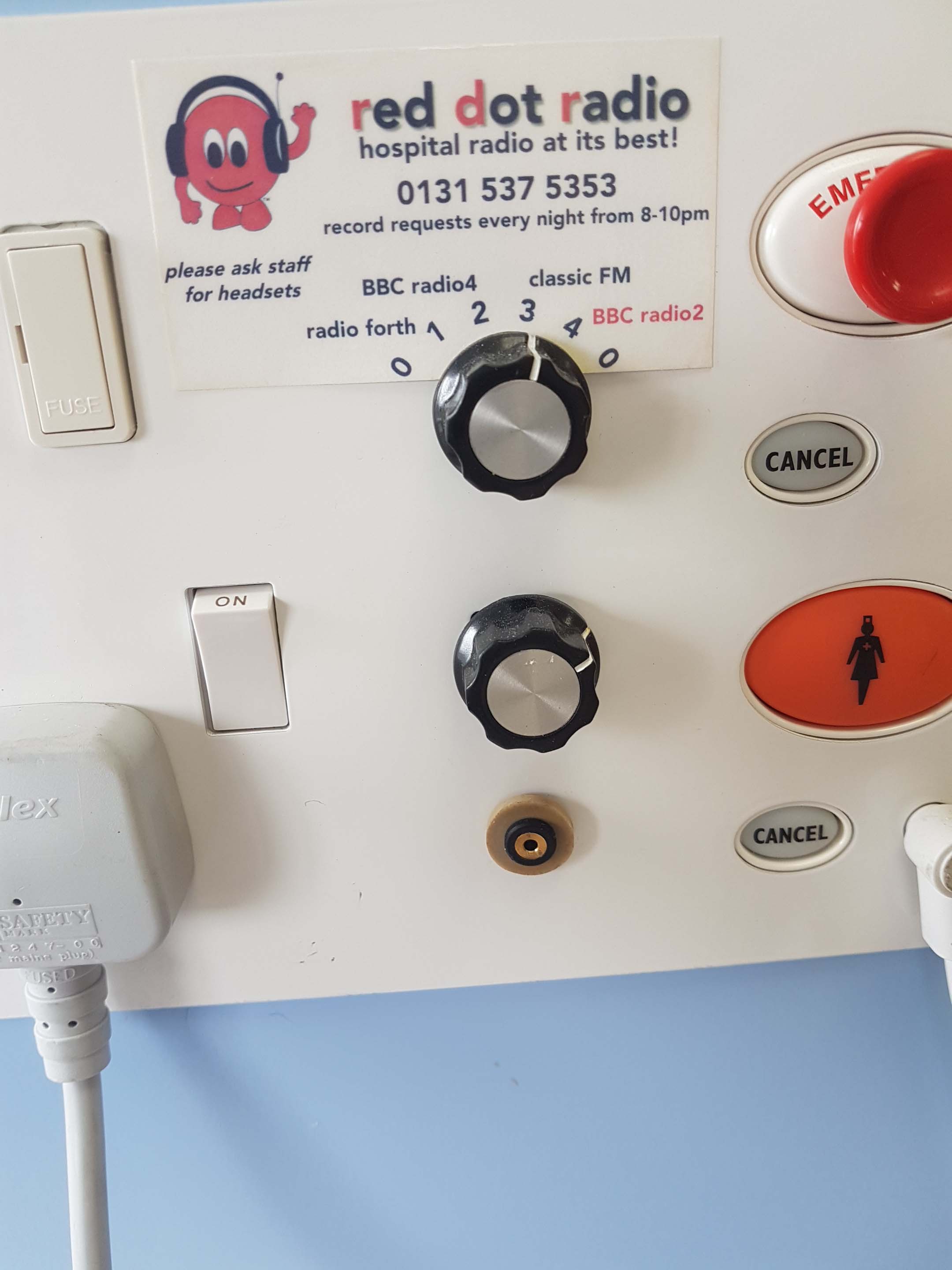

Wards 23, 24, 26 and 27

The radio system in these wards is similar to ward 11, i.e. a rotary selector for channel and volume but using a 1/4in jack for headphones. The wards should have a supply of adaptors - see the ward clark.

Wards 70 - 75 Royal Victoria Building

In these wards, which have individual room, there is a TV for each patient. We appear s a TV channel - find BBC 1 and go down one or two channels. Our logo will appear!
